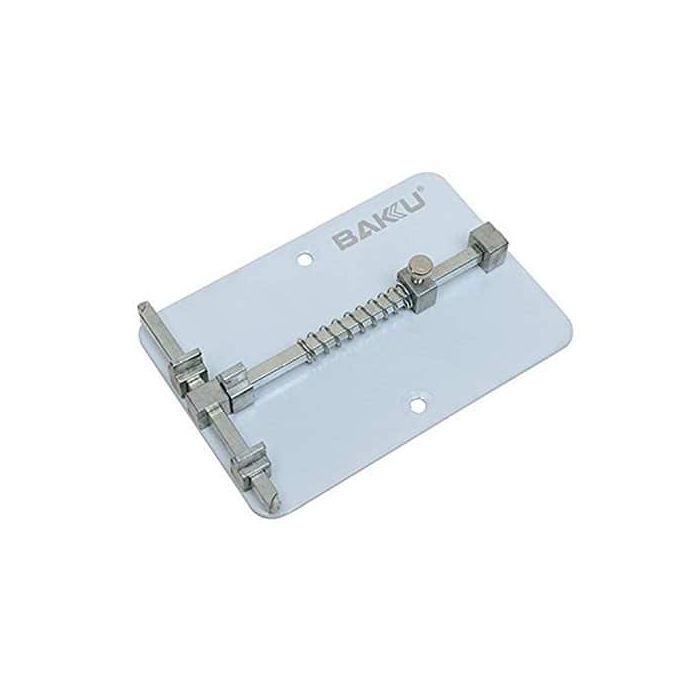

BAKU Adjustable PCB Circuit Board Holder BK-687

BAKU Adjustable PCB Circuit Board Holder BK-687

BAKU Adjustable PCB Circuit Board Holder BK-687 is a tool used to securely hold a PCB in place while you're working on it, whether you're soldering, inspecting, or performing repairs.

Description:

• Stainless Steel PCB holder, practical and durable.
  Ideal tool for clamping Mobile Phone PCB, for soldering / desoldering or rework.
• Can accommodate a variety of mobile phone PCB Circuit board size of 60mm width up to 4mm thick
• Three removable card mouth of the circuit board to choose the best position.
• Can be adjusted up and down movement of the mouth get the best of the width and strength.

Instructions:
1. use three mobile card mouth to select the best card circuit board.
2. adjust up and down to move the mouth of the card to get the best width and intensity.
3. can use self tapping screws fixed on the worktable.
4. assembly line board, should first put the side of the circuit board into the card mouth with the spring, push back and then put the other side of the circuit board into the movable clamping block, a fixed screw, then you can work.
